Belt drive spindles rely on a specially designed belt and pulley system to transmit power from the motor to the CNC spindle shaft and modify its torque and speed. They differ from direct drive versions, which deliver the power directly from the motor to the spindle without an intermediary system.

A belt drive spindle is a typical choice for high-torque milling applications requiring maximum flexibility. Examples include CNC routing, woodworking, and metalworking. They also provide significant value for tasks requiring frequent speed changes while working with various materials, such as wood, steel, and aluminum.

Here are five advantages to a belt-driven spindle from Setco.

Reduced noise: Belt drive spindles tend to generate less noise compared to other types of spindles, which can create a more comfortable working environment.
Vibration damping: The belt drive system absorbs and dampens vibration, reducing tool chatter and improving surface finish quality.
High-speed capability: Belt drive spindles can achieve high speeds, making them suitable for high-speed machining applications.
Low maintenance: Belt drive spindles require minimal maintenance, and the belts are easily replaceable when worn or damaged.
Cost-effective: Belt drive spindles are generally more affordable than other types of spindles, making them a cost-effective option for many CNC machine applications.

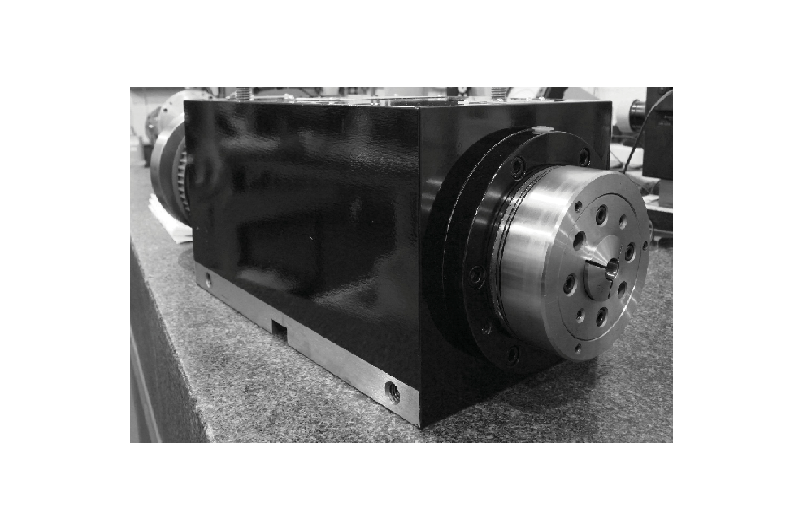

Block

Flanged Cartridge

Cartridge

Belt Drive Spindle Customization Options

Our decades of spindle expertise enable us to create custom industrial belt drive spindles to provide targeted manufacturing solutions for various industries and applications. Our range of capabilities includes:

Speed: The variable-speed pulleys enable fast, easy adjustments to accommodate speed and material changes during manufacturing.
Torque: Motors generate sufficient torque to meet the power requirements of demanding applications.
Thrust: Belt drive spindles can have various maximum thrust options to control the ability to resist axial loads during rotation.
Belt version: We have several belt types available to provide more options for customizing cutting results.

Why Trust Setco for High-Quality Materials and Advanced Manufacturing?

Setco has been in the machine building business since 1912. Since the beginning, we’ve focused on designing and producing superior products that solve our customers’ most daunting challenges and help them meet their business objectives.

Quality is the driving force behind everything we do at Setco. As an ISO 9001:2015 certified company, we adhere to this globally recognized quality management standard, ensuring we have the trained people and effective processes in place to deliver consistently exceptional products and services. It also exemplifies our ongoing commitment to continuous improvement in all aspects of our operation.

Our high-performance belt drive spindles and other products undergo a rigorous inspection process to validate their quality and adherence to our high standards. We test our spindles to verify their reliable performance in the most challenging work environments.

Setco Spindle Repair and Maintenance Services

At Setco, we also provide prompt, reliable service after the sale. We can perform predictive maintenance to ensure spindles continue to meet demands and deliver maximum uptime. Our program can identify when a spindle may fail or deviate from the predetermined tolerances, helping to prevent unexpected mechanical failures.

We will schedule our maintenance services at convenient intervals, typically during low-production periods, to minimize disruptions to normal operations.

Our in-house experts can also repair and rebuild damaged or malfunctioning belt drive spindles to restore them to peak operating condition. Our comprehensive process includes these steps:

Disassembling the spindle and cleaning all the internal components
Assessing the failure mode to determine the cause of the issue
Inspecting the components for damage, wear, or improper fit
Reconditioning worn components or installing replacements if needed
Reassembling the spindle and testing it to ensure it is functioning correctly
