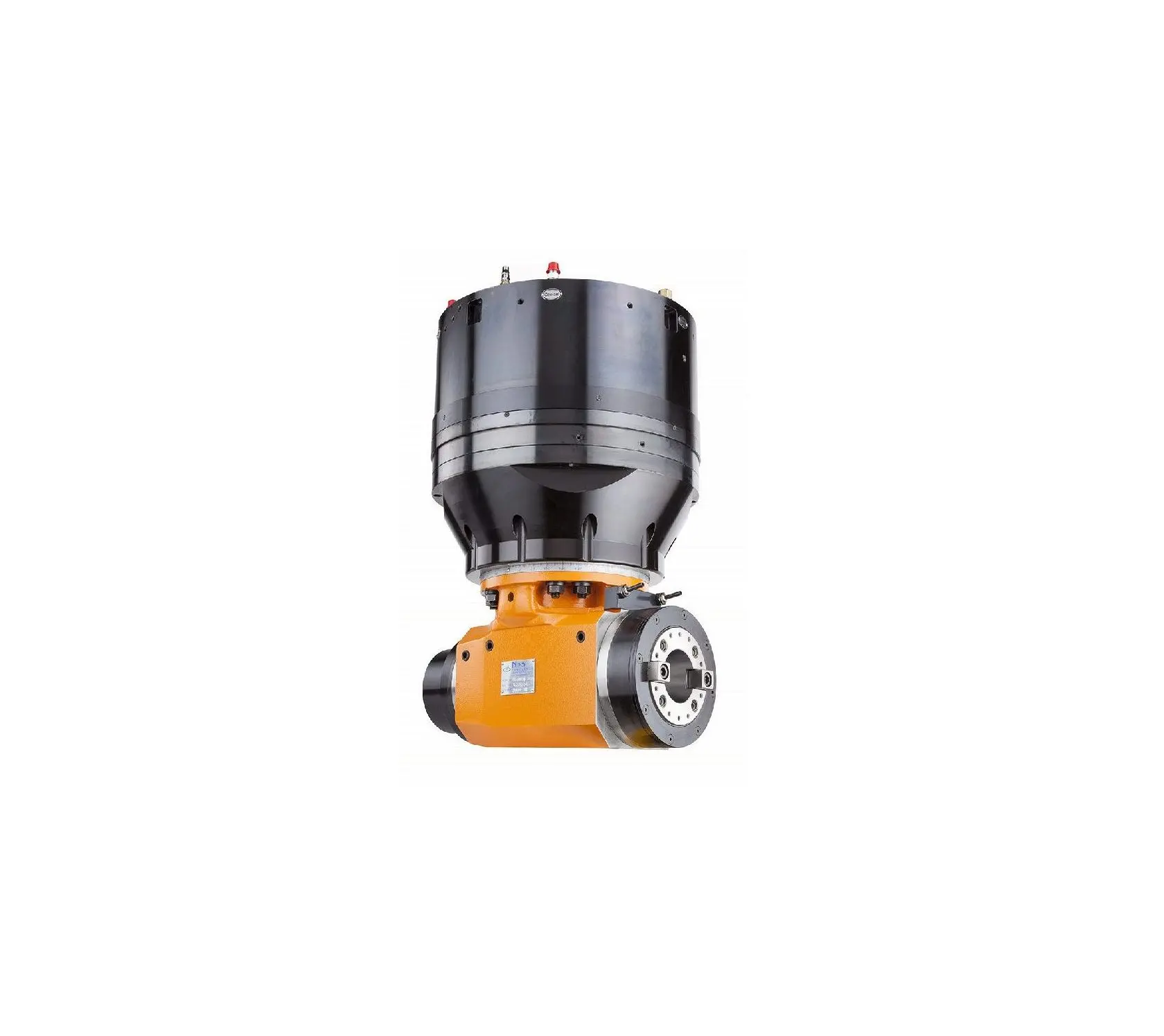

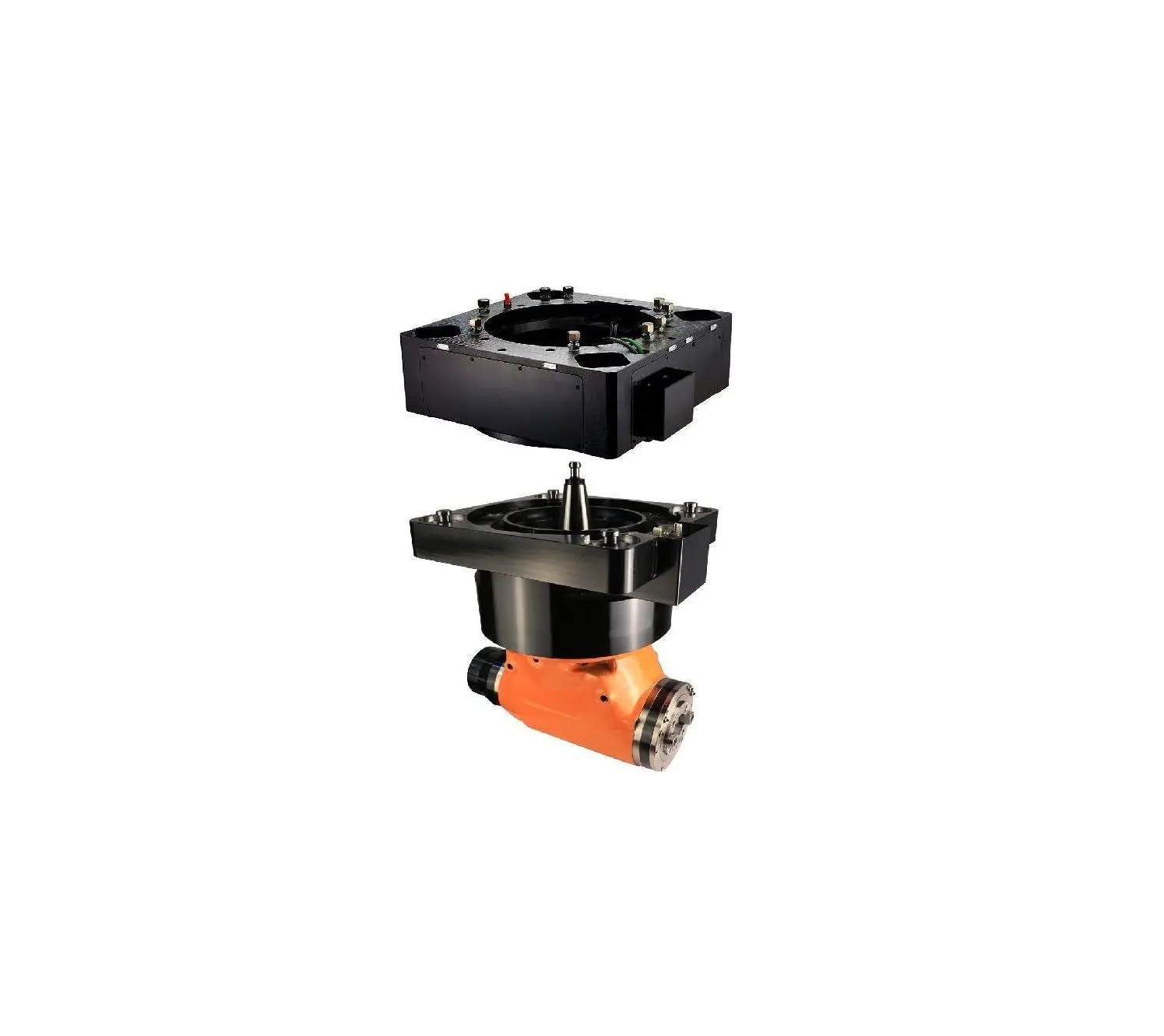

Setco automatic milling heads are advanced tools used in machining and milling processes to automate the milling operation. They are equipped with motorized mechanisms that enable automatic adjustments and movement, eliminating the need for manual intervention. Automatic milling heads offer various benefits, including increased precision, efficiency, and productivity. They can be programmed to perform complex operations, such as milling intricate patterns, drilling holes, and creating precise contours, with minimal human involvement. These heads often feature advanced control systems and sensors that ensure accurate positioning and measurements.
Automatic milling heads find applications in diverse industries, from automotive and aerospace to electronics and mold making, streamlining manufacturing processes and delivering consistent, high-quality results. Contact Setco for custom solutions for automatic milling heads.
| Milling Head | Name | Tool System | Max Speed (rpm) | Clamping Force (kgf) | Lubrication | Tool Release Pressure (kgf / cm2) | Max Torque (Nm) | A-Axis Division Angle | A-Axis Swiveling Angle | A-Axis Rotary Angle | C-Axis Division Angle | C-Axis Rotary Angle | C-Axis Swiveling Angle | Measuring System | Extension Distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A55M | Auto 90° Auto-Indexing Milling Head | BT50 | 3500 / 4500 / 6000 | 1700 | Grease / Oil-Mist | – | 1000 | 5° / 2.5° / 1° | 360° | – | – | – | – | – | – |
| A58L | Auto Two-Axis Orthogonal Auto-Indexing Milling Head | BT50 | 3500 / 4500 / 6000 | 1700 | Grease / Oil-Mist | – | 1000 | 5° / 2.5° / 1° | -90°~+270° | – | 5° / 2.5° / 1° | +/-110° | – | Increment | – |
| A56M | Auto 90° Extended Auto-Indexing Milling Head | BT50 | (Tool change) Manual : 3500 / Automatic : 2000 | (Tool change) Manual : M24 Bolt / Automatic : 1200 | Grease | (Tool change) Manual : 65 / Automatic:- | 300 / 500 | – | – | – | 5° / 2.5° / 1° | 360° / -90°~ +270° | – | – | 500 / 600 |
| A62M | Auto Extended Milling Head | BT50 | 6000 | 1200 | Grease | 60 | 650 | – | – | – | – | – | – | – | 340 / 500 |
| A53M | Auto 30° Auto-Indexing Milling Head | BT50 | 4500 | 1200 | Oil-Mist | – | 1000 | – | – | – | 5° / 2.5° / 1° | 360° | – | – | – |
| A55L | Auto 90° Auto-Indexing Milling Head | BT50 | 3500 | 1700 | Grease | 60 | 2000 | – | – | – | 5° / 2.5° / 1° | 360° | – | – | – |
| A55C | Auto 90° Auto-Indexing Milling Head (4-Stud) | BT50 | 3500 / 6000 | 1700 | Grease | 60 | 1000 | – | – | – | 5° / 2.5° / 1° | – | 360° | – | – |
| A58C | Auto Two-Axis Orthogonal Auto-Indexing Milling Head (4-Stud) | BT50 | 3500 / 6000 | 1700 | Grease | 60 | 1000 | 5° / 2.5° | – | ± 110° | 5° / 2.5° | – | -90 ° ~ +270 ° | – | – |
| A55X | Auto 90° Auto-Indexing Milling Head (4-Stud) | BT50 | 2000 | 1800 | Grease | 75 | 2000 | – | – | – | 5° / 2.5° / 1° | – | 360° | – | – |
| A58X | Auto Two-Axis Orthogonal Auto-Indexing Milling Head (4-Stud) | BT50 | 2000 | 1800 | Grease | 75 | 2000 | 5° | – | +/-110° | 5° / 2.5° | – | +/-180° | – | – |
| A55F | Auto 90° Auto-Indexing Milling Head | ISO 50 DIN | 1700 | 2400 | Grease | 65 | 4000 | – | – | – | 2.5° | 360° | – | – | – |
| A56F | Auto 90° Extended Auto-Indexing Milling Head | ISO 50 DIN | 1800 | 1200 | Grease | 65 | 500 | – | – | – | 2.5° | 360° | – | – | 750 |
| A62F | Auto Extended Milling Head | ISO 50 DIN | 2000 | 2400 | Grease | 65 | 2500 | – | – | – | – | – | – | – | 680 |
| Milling Head | Name | Tool System | Max Speed (rpm) | Clamping Force (kgf) | Lubrication | Tool Release Pressure Kgf / cm2 | Max Torque (Nm) | A-Axis Division Angle | A-Axis Rotary Angle | C-Axis Division Angle | C-Axis Rotary Angle | C-Axis Swiveling Angle | Measuring System | Extension Distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B55K | B55K Auto 90° Auto-Indexing Milling Head (Horizontal) | BT50 | 3500 | 1200 | Grease | 60 | 1000 | – | – | 5° / 2.5° | – | 360° | – | – |
| B62K | Auto Extended Milling Head (Horizontal) | BT50 | 2000 | 1500 | Grease | 60 | 430 | – | – | – | – | – | – | 380.5 |
| B56K | Auto 90° Extended Auto-Indexing Milling Head (Horizontal) | BT50 | 2000 | 1200 | Grease | 65 | 500 | – | – | 5° / 2.5° | +/- 180° | – | – | 596.5 |
